Deep Groove Ball Bearings
911443016
Product Number: 911443016
HITS: 1176  DATE: 2025/9/1
SPECS: 6036Z
PRICE: Bargaining
UNIT: pcs
PLACE: China
Request Quote Now
Description

The parameters of our 6036Z bearing are as follows:

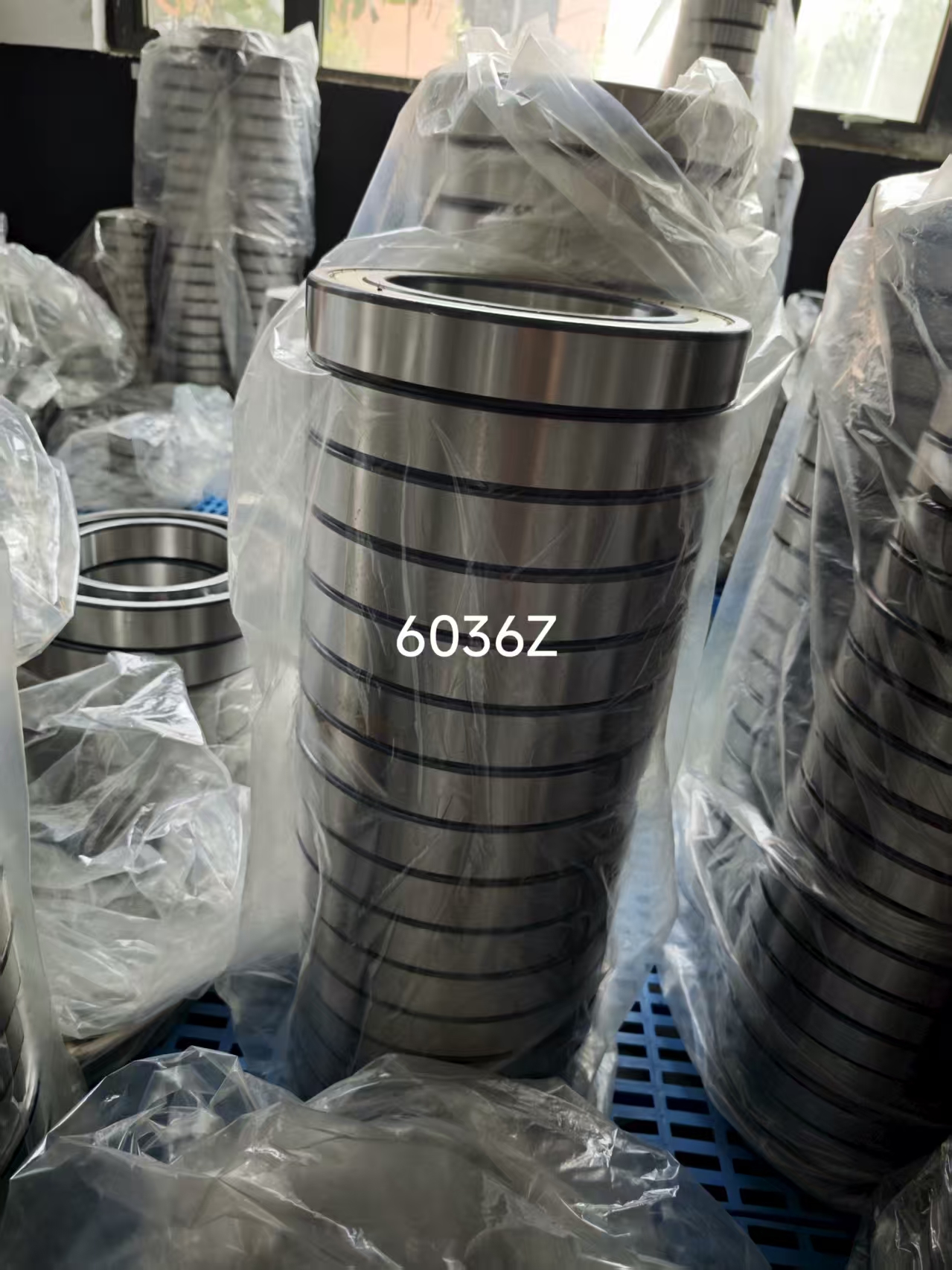

Real product pictures：




Dimensions
Inner Diameter: 180 mm
Outer Diameter: 280 mm
Thickness: 46 mm

Load Specifications
Dynamic Load Rating (Cr): 188 kN (18.8 tons)

Static Load Rating (Cor): 198 kN (19.8 tons)

Speed Specifications
Grease Lubrication Speed: 1300 rpm

Oil Lubrication Speed: 2400 rpm

Other Features
Installation Dimensions: Shaft shoulder minimum 191 mm, maximum 208 mm; housing shoulder maximum 269 mm

Weight: Approximately 8.51 kg

This model is a deep groove ball bearing widely used in hydraulic cylinders, machine tool spindles, reducers, and other applications.
