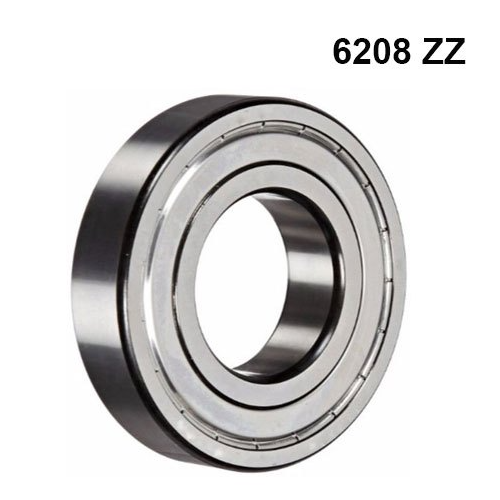

Dimensions: Inner diameter 40mm, outer diameter 80mm, thickness 18mm, minimum chamfer radius 1.1mm
Load Capacity
Dynamic Load Rating (Cr): 29.1kN (some sources indicate 29.5kN)
Static Load Rating (Cor): 17.8kN (some sources indicate 18.0kN)
Speed and Lubrication
Grease Lubrication: Speeds up to 8000-8700 rpm
Oil Lubrication: Speeds up to 10,000 rpm
Application Characteristics
Simple structure, capable of withstanding radial loads and partial axial loads
Permits relative tilt of 8"-16" between the housing bore and the shaft
Suitable for applications in engineering machinery, power equipment, automotive, metallurgy, mining, and other industries.
