Inner Diameter: 120 mm
Outer Diameter: 180 mm
Thickness: 28 mm
Weight: Varies by brand, typically between 1.99 and 2.4 kg
Load Capacity
Radial Basic Dynamic Load Rating: Approximately 87.5 kN
Radial Basic Static Load Rating: 79.2 kN

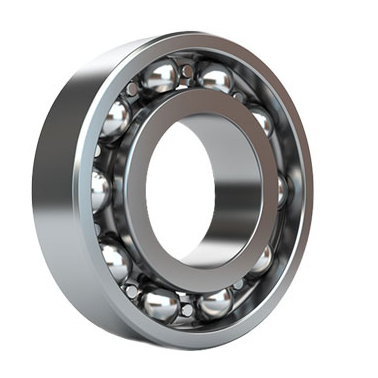

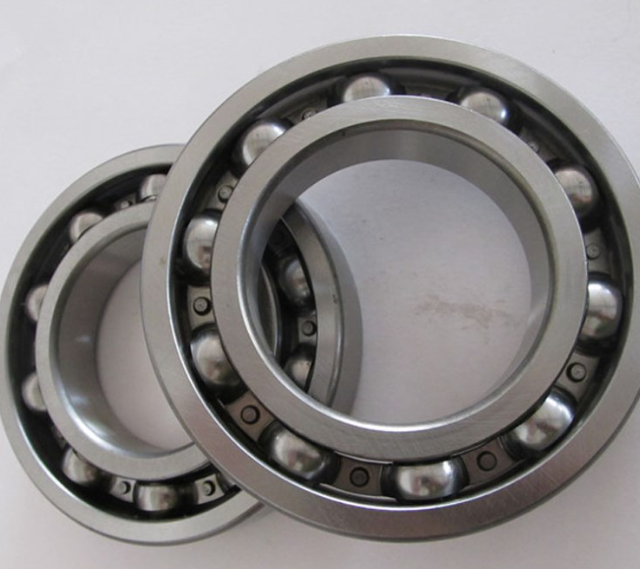

Structural Features
The stamped steel retainer can withstand radial and bidirectional axial loads, making it suitable for high-speed, low-noise operation. Some models offer optional features such as dust covers and seals.
Industrial Applications
Widely used in automotive transmissions, machine tool spindles, construction machinery (such as excavator slewing rings), metallurgical and mining equipment (crushers), oil drilling equipment, and railway track inspection equipment.
