Double direction thrust angular contact ball bearings

Product Number: 9291561016

HITS: 212 DATE: 2025/9/29

SPECS: ZKLF2575-2RS

PRICE: Bargaining

UNIT: pcs

PLACE: China

Request Quote Now

Description

The ZKLF2575-2RS bearing specifications are as follows:

Dimensions
Inner Diameter: 25mm
Outer Diameter: 75mm
Thickness: 28mm

Sealing Method: Contact seal (2RS designation)

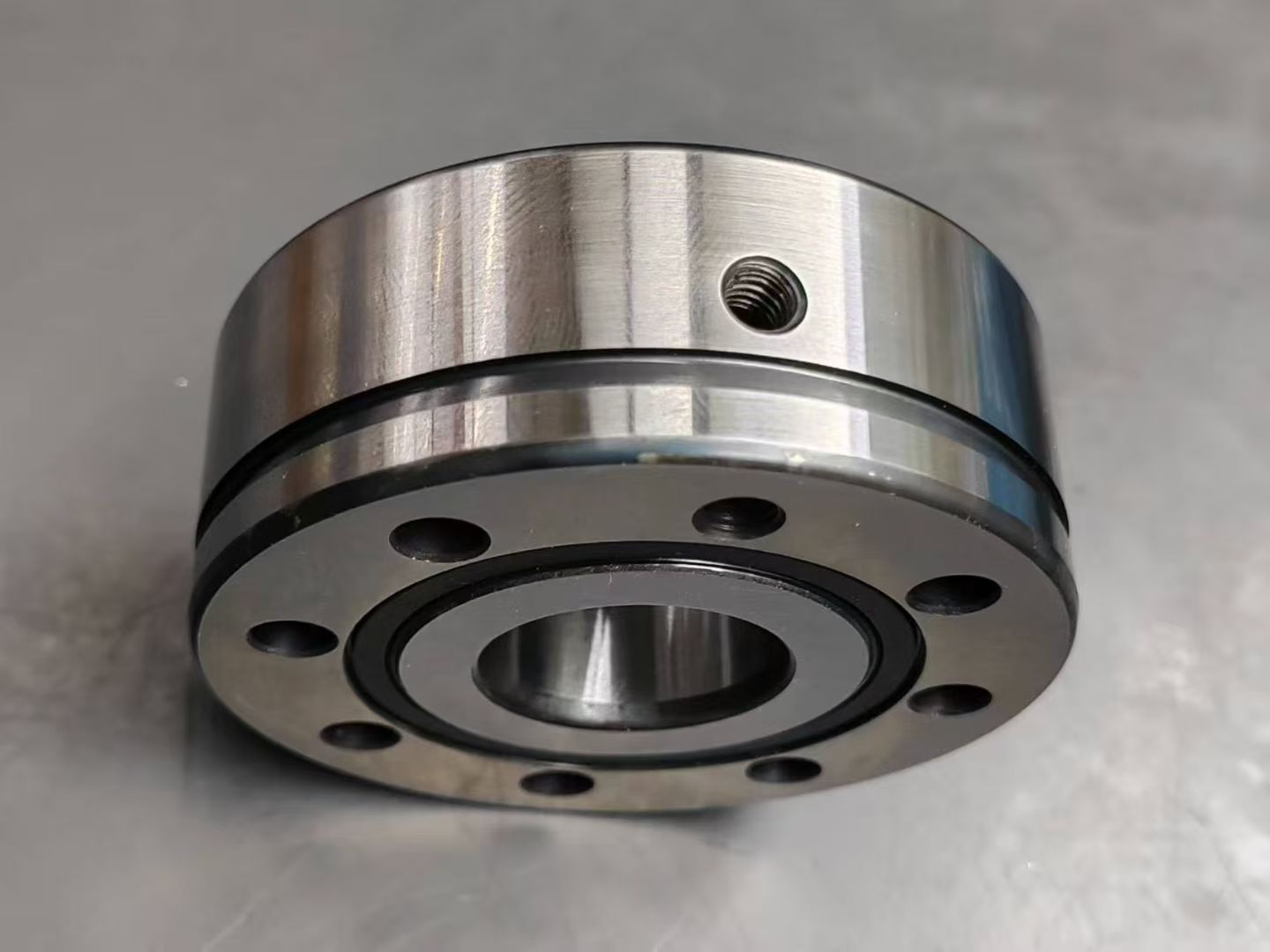

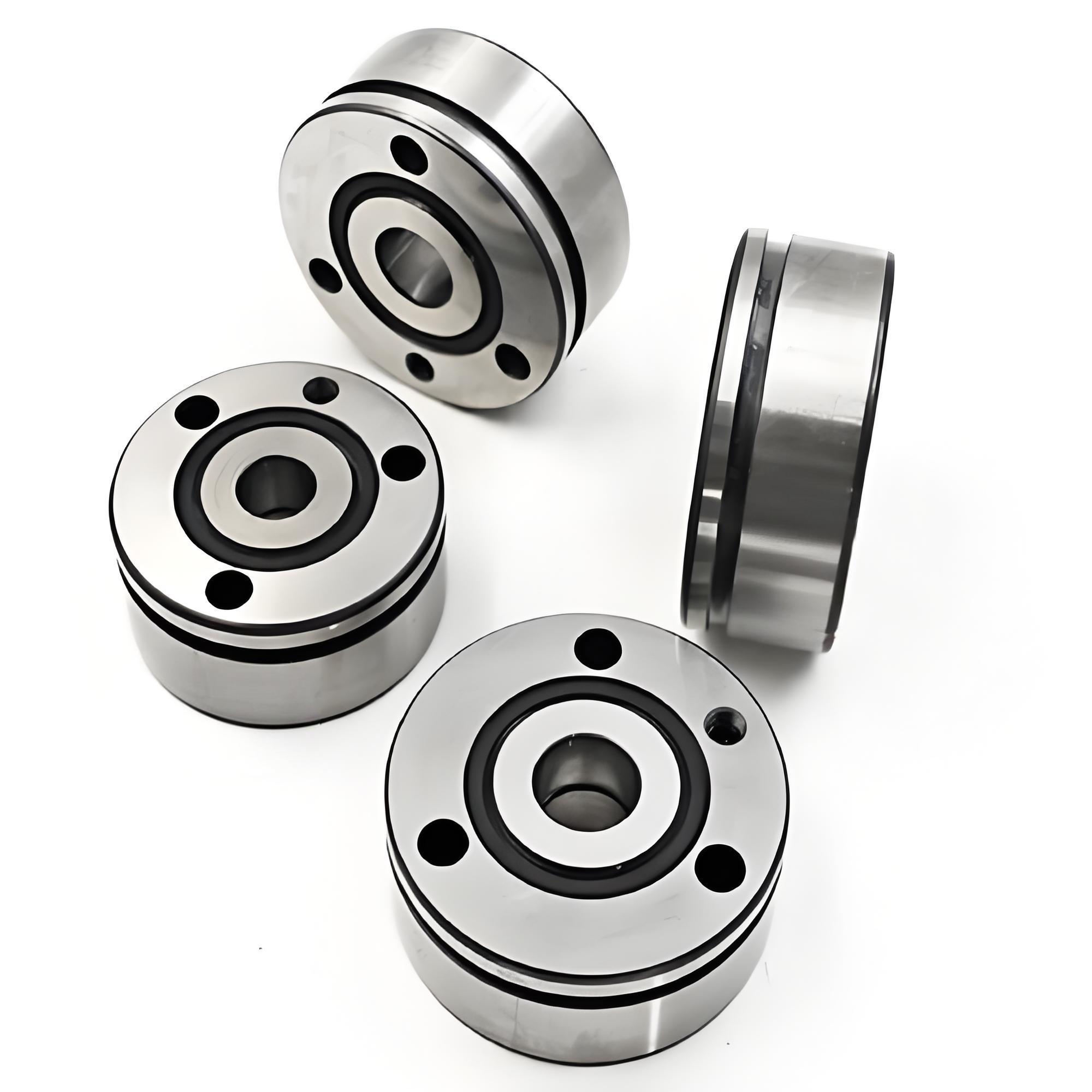

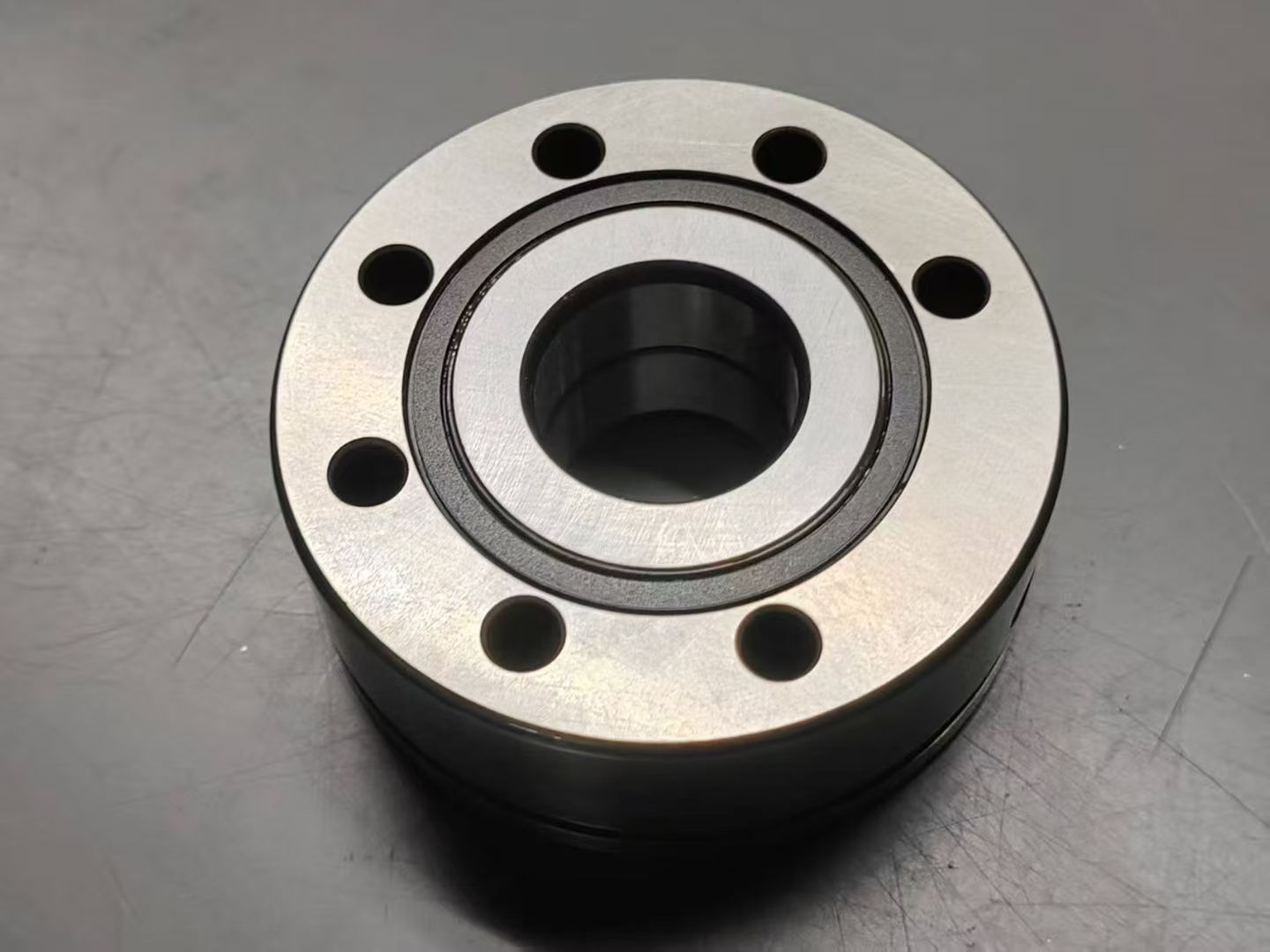

Real product pictures

Mounting Parameters
Fixing Method: Outer ring with mounting holes for direct bolt fastening

Supporting Nut: ZMA25/45.AM25 locknut recommended

Performance Parameters
Dynamic Load Rating: 27.5 kN
Static Load Rating: 55 kN
Maximum Speed for Grease Lubrication: 2600 rpm

Friction Torque: 0.4 N·m
Setting Screw Tightening Torque: 25 N·m

Applications
Suitable for machine tool screw drive systems, capable of withstanding radial and bidirectional axial forces, supporting axial preload, and offering high rigidity and precision.
