Spherical Bearings
11121422116
Product Number: 11121422116
HITS: 1  DATE: 2025/11/12
SPECS: SSUC217
PRICE: Bargaining
UNIT: pcs
PLACE: China
Request Quote Now
Description

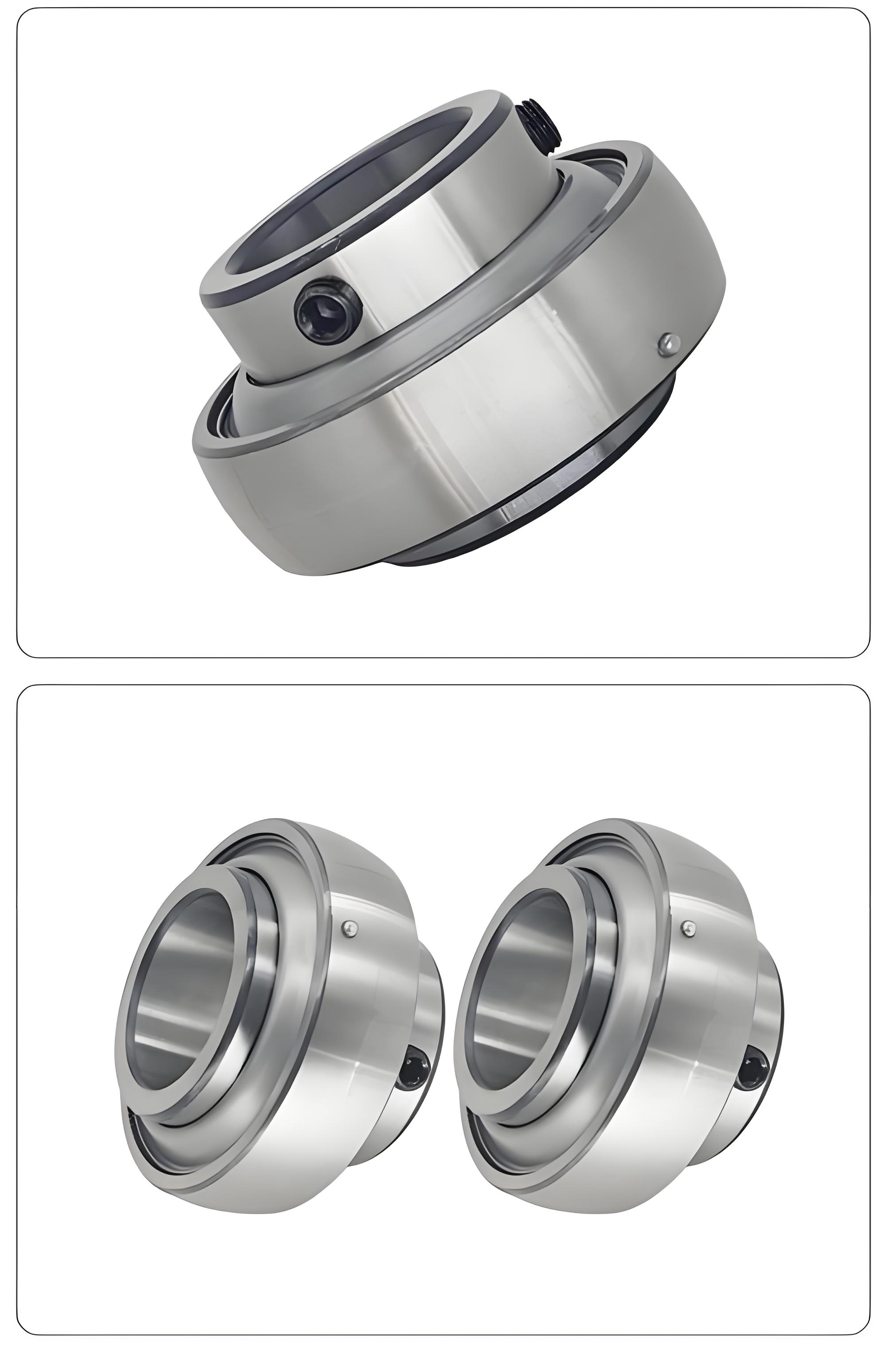

The SDXM SSUC217 bearing is a stainless steel spherical roller bearing. Its key parameters are as follows:

Basic Parameters:
Shaft Diameter: 85mm
Outer Diameter: 150mm
Width: 85.7mm
Weight: 3.38kg
Structural Characteristics:
Material: SUS304 stainless steel
Design: Combination of spherical roller bearing and stainless steel bearing housing, with self-aligning function.

Load Capacity:
Basic Rated Dynamic Load: 83.2kN
Basic Rated Static Load: 64kN

Installation Parameters:
Bolt Hole Diameter: 20mm
Bolt Hole Center Spacing: 247mm

Total Housing Width: 83mm


Applications and Features
SSUC217 bearings are mainly used in industrial fields such as food packaging, printing and dyeing chemicals, and logistics equipment. They possess characteristics such as corrosion resistance, water and dust resistance, and high temperature resistance.
