Non-standard Deep Groove Ball Bearings for automotive gearboxes
I. Basic Dimensions
✅ Model: F-803197.10 (F-803197/10 is an industry abbreviation)
✅ Bearing Type: Single row deep groove ball bearing (non-standard bearing for automotive gearboxes)
✅ Dimensions: Inner diameter d=32 mm, outer diameter D=87 mm, width B=21 mm
✅ Single weight: ≈0.559 kg
✅ Material: GCr15 bearing steel, nylon cage, rubber seal structure
✅ Structural characteristics: Non-standard inner and outer diameters, no national standard universal replacement model, only interchangeable with non-standard products of the same part number
II. Load and Speed Reference (Original Manufacturer Reference Values)
Basic rated dynamic load Cr: 48.2 kN
Basic rated static load C0r: 52.5 kN
Limiting speed (grease lubrication): 7200 rpm
Applicable temperature range: -30℃ ~ +150℃
III. Product Advantages
✅ Specialized Seal Structure for Gearboxes
Customized gearbox oil-resistant seals, resistant to oil corrosion, preventing lubricant leakage, and suitable for long-term gear oil immersion conditions.
✅ Balanced Load Bearing, Resistant to Alternating Loads
Deep groove ball bearing structure, simultaneously bearing radial loads and bidirectional axial loads, adapting to gearbox shift shocks.
✅ High Operating Precision and Low Noise
Precision raceway machining results in low vibration at high speeds, meeting the quiet operation requirements of passenger car gearboxes.
High Temperature Resistance and Long Lifespan
✅ Special heat treatment process ensures good dimensional stability under prolonged high-temperature conditions, reducing the risk of premature fatigue spalling.
⚠️Note: This is a non-standard automotive bearing; standard 62XX/63XX deep groove ball bearings cannot be directly replaced.
IV. Main Applications
Core Application: Internal bearings for Mercedes-Benz passenger car automatic transmissions (mainstream 7AT/9AT transmissions)
Extended Applications:
Automotive automatic transmissions, transfer case gear supports
Small gearboxes in construction machinery, hydraulic transmission units
Heavy-duty small gearboxes, industrial precision transmission devices

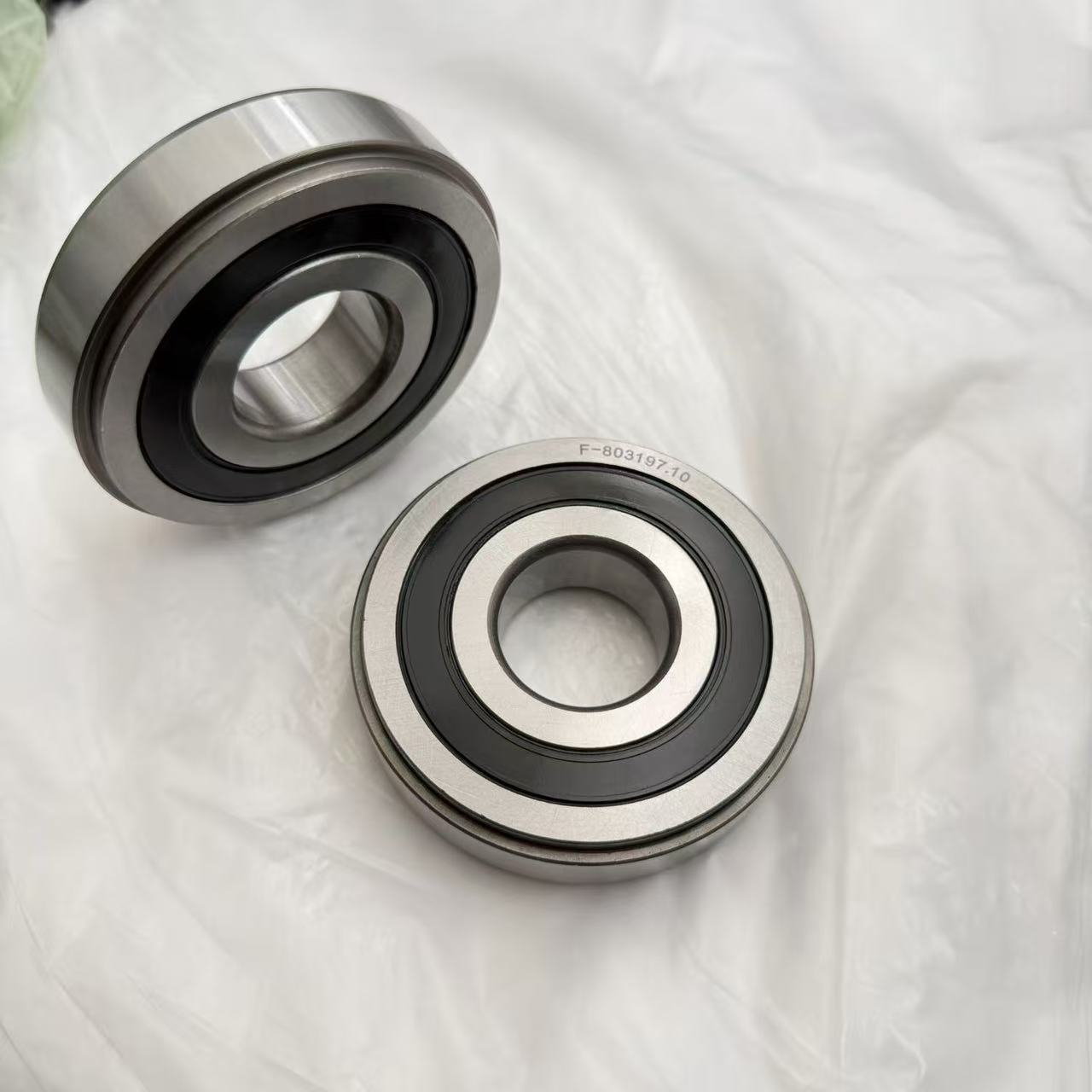

Real product photos
